Introduction to Non-Specific Adsorption in Biosensors

Biosensors play a key role in modern diagnostics, especially for the early detection of disease biomarkers. To achieve high performance, a biosensor must combine sensitivity, selectivity, and stability. However, one of the main challenges that affects these parameters is non-specific adsorption (NSA).

Non-specific adsorption occurs when unwanted molecules, such as proteins, attach to the sensor surface without any specific interaction. This leads to background noise, false signals, and reduced accuracy, making it harder to distinguish real target detection.

This issue is particularly critical in surface-based biosensors, including immunosensors, electrochemical sensors, and microfluidic devices. These systems often operate in complex biological environments, such as blood or serum, where many interfering molecules are present.

What is Non-Specific Adsorption (NSA)?

NSA refers to the undesired binding of molecules to a sensor surface, mainly through weak physical interactions such as:

• Hydrophobic forces
• Electrostatic interactions
• Van der Waals forces
• Hydrogen bonding

Unlike specific binding (antibody-antigen interaction), NSA does not provide useful analytical information. Instead, it produces false-positive signals, reduces detection limits, and affects reproducibility.

In biosensing systems, NSA can occur in multiple ways:

• Binding to empty surface areas
• Attachment to non-target regions
• Interference with active sensing sites
• Disturbance of biomolecule orientation and function

As biosensors become smaller (micro- and nanoscale), controlling NSA becomes even more important because surface effects dominate system performance.

Importance of NSA Control in Microfluidic Biosensors

Microfluidic biosensors handle extremely small liquid volumes and are widely used in:

• Biomedical diagnostics
• Drug screening
• Cell analysis
• Lab-on-a-chip systems

These devices offer advantages such as low reagent consumption, fast response time, and portability. However, their high surface-to-volume ratio makes them highly sensitive to NSA.

Many microfluidic biosensors rely on immobilized bioreceptors like:

• Antibodies
• Enzymes
• DNA strands

These are often attached using linker molecules such as self-assembled monolayers (SAMs), which can themselves promote non-specific adsorption if not properly controlled.

Types of Biosensors Affected by NSA

Biosensors can be divided into two main categories based on their detection mechanism:

1. Affinity Biosensors

• Based on specific binding (e.g., antibody-antigen)

•

  Highly sensitive to NSA

• Widely used in protein biomarker detection

2. Catalytic Biosensors

• Based on enzymatic reactions
• Example: glucose sensors using glucose oxidase
• Less affected by NSA but still require surface control

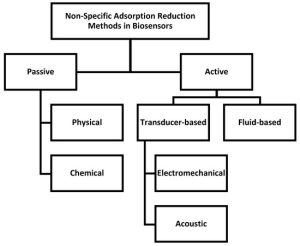

Methods to Reduce Non-Specific Adsorption

NSA reduction strategies are generally classified into two main approaches:

Passive Methods (Surface Modification)

Passive methods aim to prevent adsorption before it happens by modifying the sensor surface.

Physical Blocking Methods

These methods use proteins or materials to cover the surface and block unwanted binding.

Common blocking agents include:

• Bovine serum albumin (BSA)
• Casein
• Milk proteins

These molecules form a protective layer that reduces available binding sites. However, limitations include:

• Non-uniform coverage
• Possible cross-reactivity
• Reduced reproducibility

Another approach involves permselective membranes, which selectively allow certain molecules to pass while blocking others.

1. Chemical Surface Modification

Chemical strategies create anti-fouling coatings that resist protein adsorption.

Key techniques include:

PEG-Based Coatings

• Hydrophilic and flexible polymer layers
• Reduce protein attachment through surface hydration
• Limitations: instability under oxidation and reduced performance in complex fluids

Self-Assembled Monolayers (SAMs)

• Provide controlled surface functionalization
• Allow attachment of bioreceptors
• Challenges: defects, surface roughness, and incomplete coverage

Zwitterionic Polymers

• Contain both positive and negative charges
• Form strong hydration layers
• Highly effective against protein adsorption
• Limited by complex synthesis processes

Surface Topography Engineering

Surface structure also plays a role in NSA control. Techniques include:

• Nanostructured surfaces
• Protein-imprinted cavities
• Surface patterning

These approaches improve specific binding while limiting non-specific interactions.

2. Active Methods (Post-Adsorption Removal)

Active methods remove non-specifically bound molecules after adsorption occurs, using physical forces.

These methods are gaining attention due to their higher efficiency in complex environments.

Transducer-Based Methods

These techniques use electrical, mechanical, or acoustic energy to generate shear forces that detach weakly bound molecules.

Electrohydrodynamic (ac-EHD) Flow

• Generates nanoscale fluid motion near the surface
• Enhances target binding while removing weak interactions
• Improves sensitivity significantly

Mechanical Vibration (Cantilever Systems)

• Uses vibration to release adsorbed proteins
• Effective for both proteins and DNA molecules

Acoustic Wave Methods

• Use sound waves to induce fluid motion (acoustic streaming)
• Remove loosely bound molecules without damaging specific binding
• Enable sensor reusability

Fluid-Based (Hydrodynamic) Methods

These methods rely on controlled fluid flow in microchannels to create shear forces.

Examples include:

• Pressure-driven flow
• Sheath flow systems
• Hydrodynamic washing

Advantages:

• Simple and compatible with microfluidic systems
• No additional hardware required

Limitations:

• Requires precise flow control
• Less effective for strongly adsorbed molecules

Challenges in NSA Reduction

Despite many available techniques, no single method is universally effective. Key challenges include:

• Compatibility with different sensor materials
• Integration into existing systems
• Maintaining sensitivity while reducing noise
• Cost and complexity of implementation

Performance depends on multiple factors:

• Type of analyte
• Surface chemistry
• Bioreceptor properties
• Operating conditions

Future Trends in Biosensor Design

The field is moving toward hybrid approaches that combine passive and active methods for better performance.

Emerging directions include:

• Integration of NSA control in lab-on-chip systems
• Development of multifunctional anti-fouling coatings
• Use of nanomaterials for improved selectivity
• Real-time monitoring of adsorption processes

Active removal techniques are becoming more popular due to their adaptability and efficiency, especially in miniaturized biosensors.

Conclusion

Non-specific adsorption remains one of the biggest challenges in biosensing technology. It directly affects accuracy, sensitivity, and reliability of detection systems.

While passive surface modifications help prevent adsorption, active removal methods offer a more dynamic and effective solution, especially in complex biological environments.

Future biosensors will likely rely on combined strategies, integrating surface chemistry, microfluidics, and physical removal techniques to achieve optimal performance.
